Features:

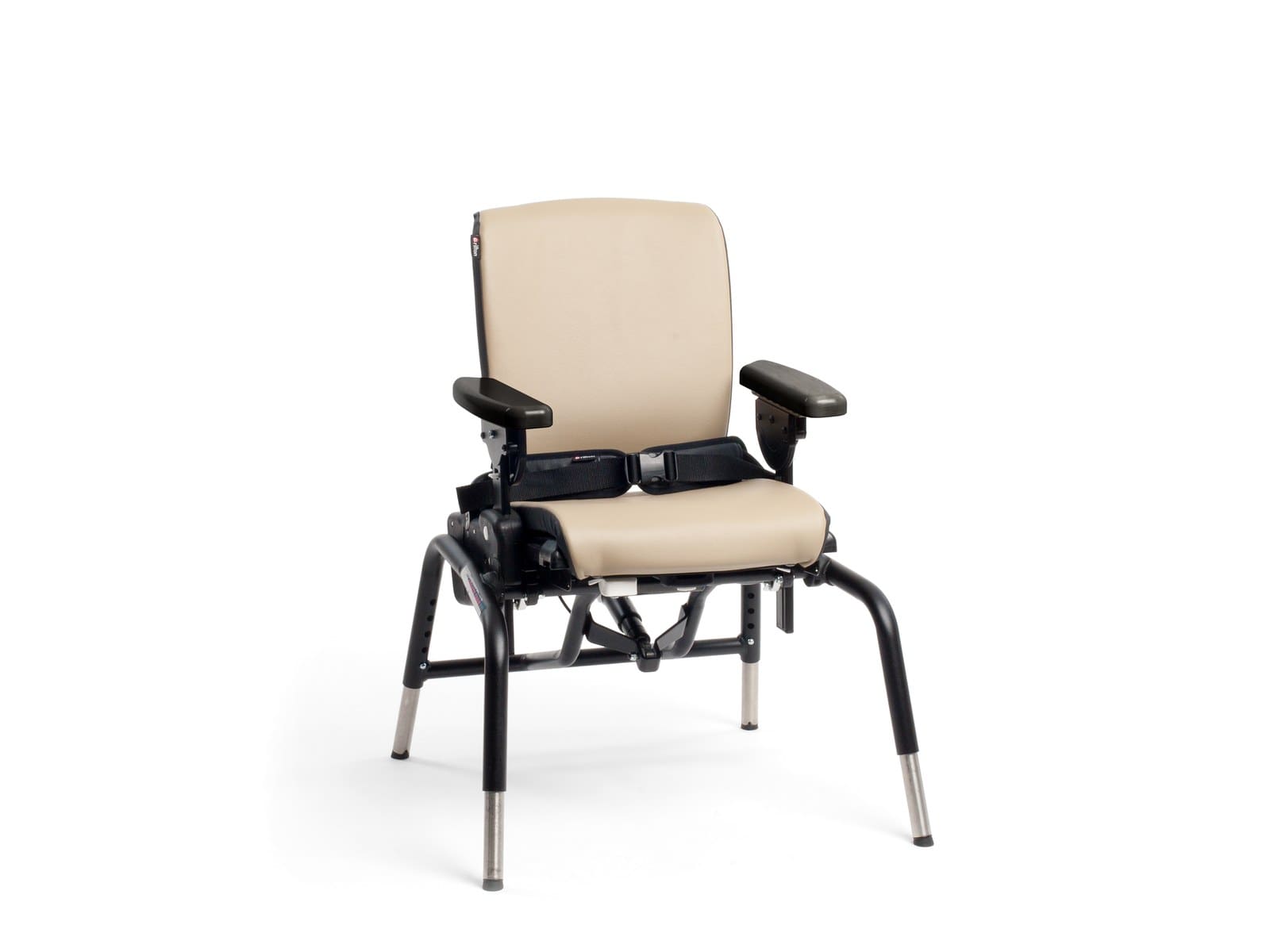

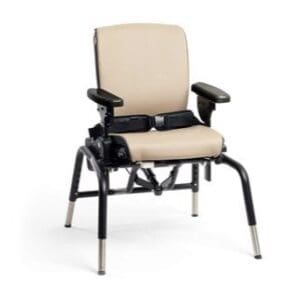

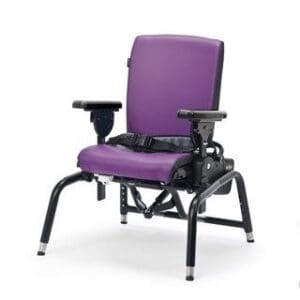

Standard Base

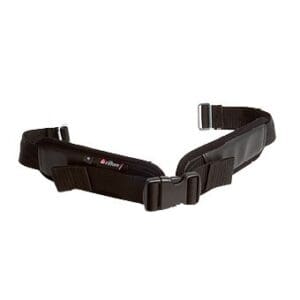

- Seat and back padding including adjustable back and seat belt
- Base with tilt-in-space

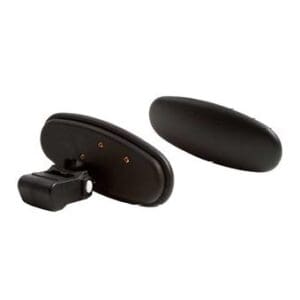

- Armrests and short adjustable legs
- Caster swivel lock

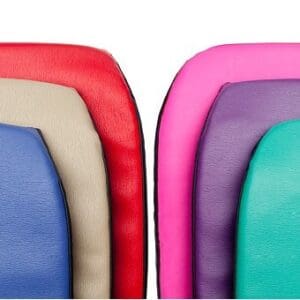

- Choice of 6 pad colors

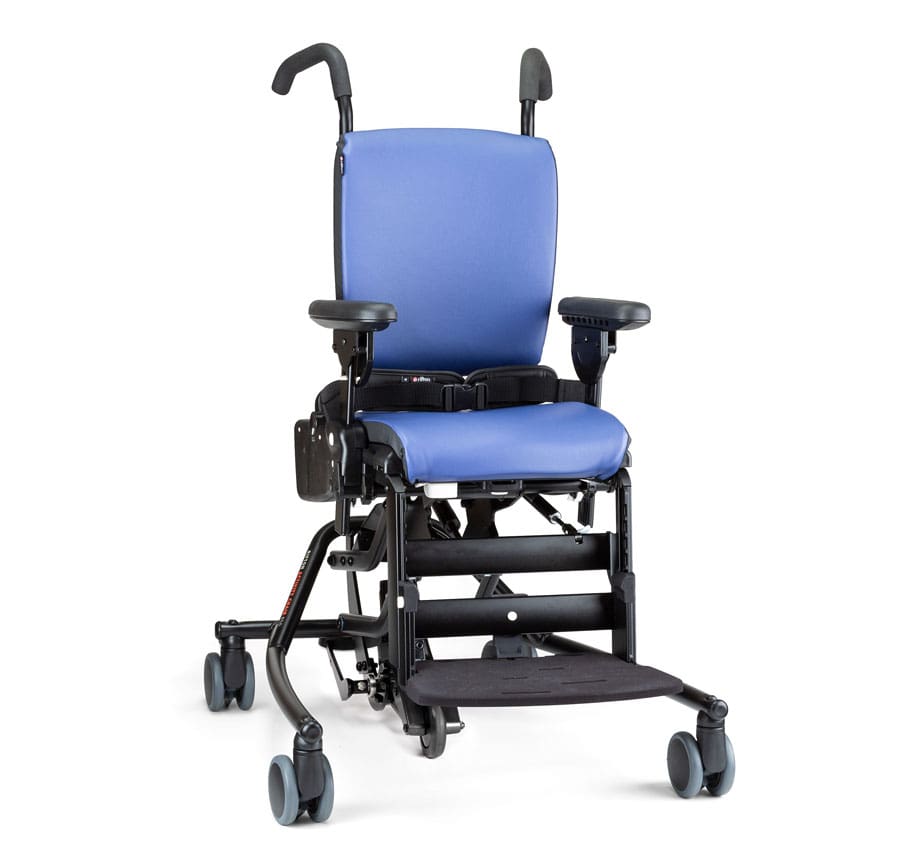

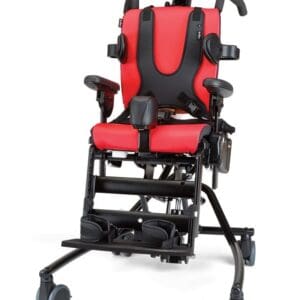

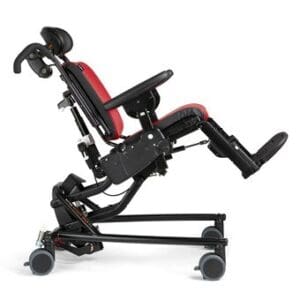

Hi/Lo Base

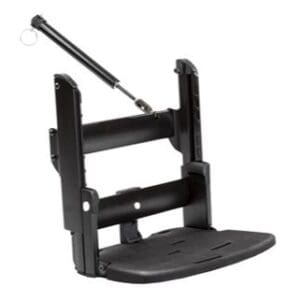

- Seat and back padding including adjustable back, seat belt and foot board
- Wheeled base with tilt-in-space and height adjustable

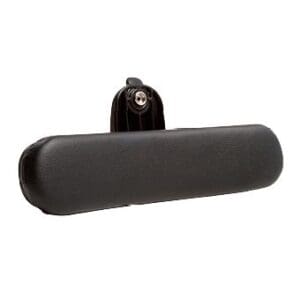

- Armrests

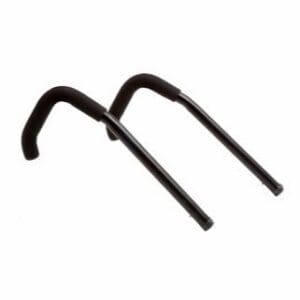

- Push handles
Specifications:
USER DIMENSIONS [CM] | STD SMALL | HI/LO SMALL | STD MEDIUM | HI/LO MEDIUM | STD LARGE | HI/LO LARGE |
---|---|---|---|---|---|---|
User Height Range | 71 – 122 | 71 – 122 | 102 – 142 | 102 – 142 | 127 – 188 | 127 – 188 |
ITEM DIMENSIONS [CM] | STD SMALL | HI/LO SMALL | STD MEDIUM | HI/LO MEDIUM | STD LARGE | HI/LO LARGE |
---|---|---|---|---|---|---|
Frame Width | 63 | 70 | 75 | |||

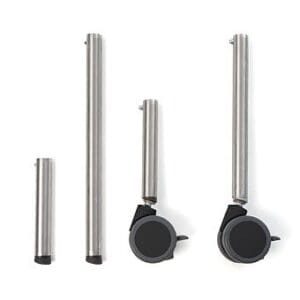

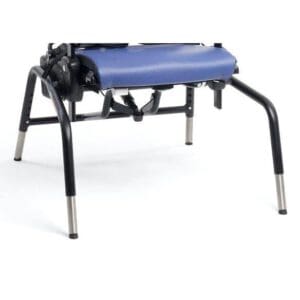

Short Legs | 53 | 59 | 66 | |||
Long Legs | 58 | 62 | 66 | |||
Short Legs /W Wheels | 57 | 62 | 71 | |||
Seat Height above Floor | 25-64 | 30-58 | 41-61 | |||
Short Legs | 24-32 | 32-42 | 42-52 | |||
Long Legs | 47-55 | 48-58 | 51-61 | |||
Short Legs /W Wheels | 34-42 | 41-51 | 42-52 | |||
Long Legs /W Wheels | 47-55 | 48-58 | 51-61 | |||
Seat Angle (tilt-in-space forward) [º] | 15 | 15 | 15 | 15 | 15 | 15 |
Seat Angle (tilt-in-space back) [º] | 15 | 25 | 15 | 25 | 15 | 25 |
Backrest Angle (forward) [º] | 5 | 5 | 5 | 5 | 5 | 5 |
Backrest Angle (back) [º] | 20 | 20 | 20 | 20 | 20 | 20 |
Seat Height Above Footboard | 23-30 | 23-30 | 30-42 | 30-42 | 38-51 | 38-51 |
Seat Height Above Footboard with Mini Kit | 15-23 | 15-23 | ||||
Seat Width with Hip Guides | 18-23 | 18-23 | 22-29 | 22-29 | 28-36 | 28-36 |
Seat Width without Hip Guides | 30 | 30 | 36 | 36 | 43 | 43 |
Seat Depth | 20-30 | 20-30 | 28-41 | 28-41 | 38-51 | 38-51 |
Seat Depth with Mini Kit | 18-28 | 18-28 | ||||
Armrest Height above Seat | 13-19 | 13-19 | 18-27 | 18-27 | 18-27 | 18-27 |

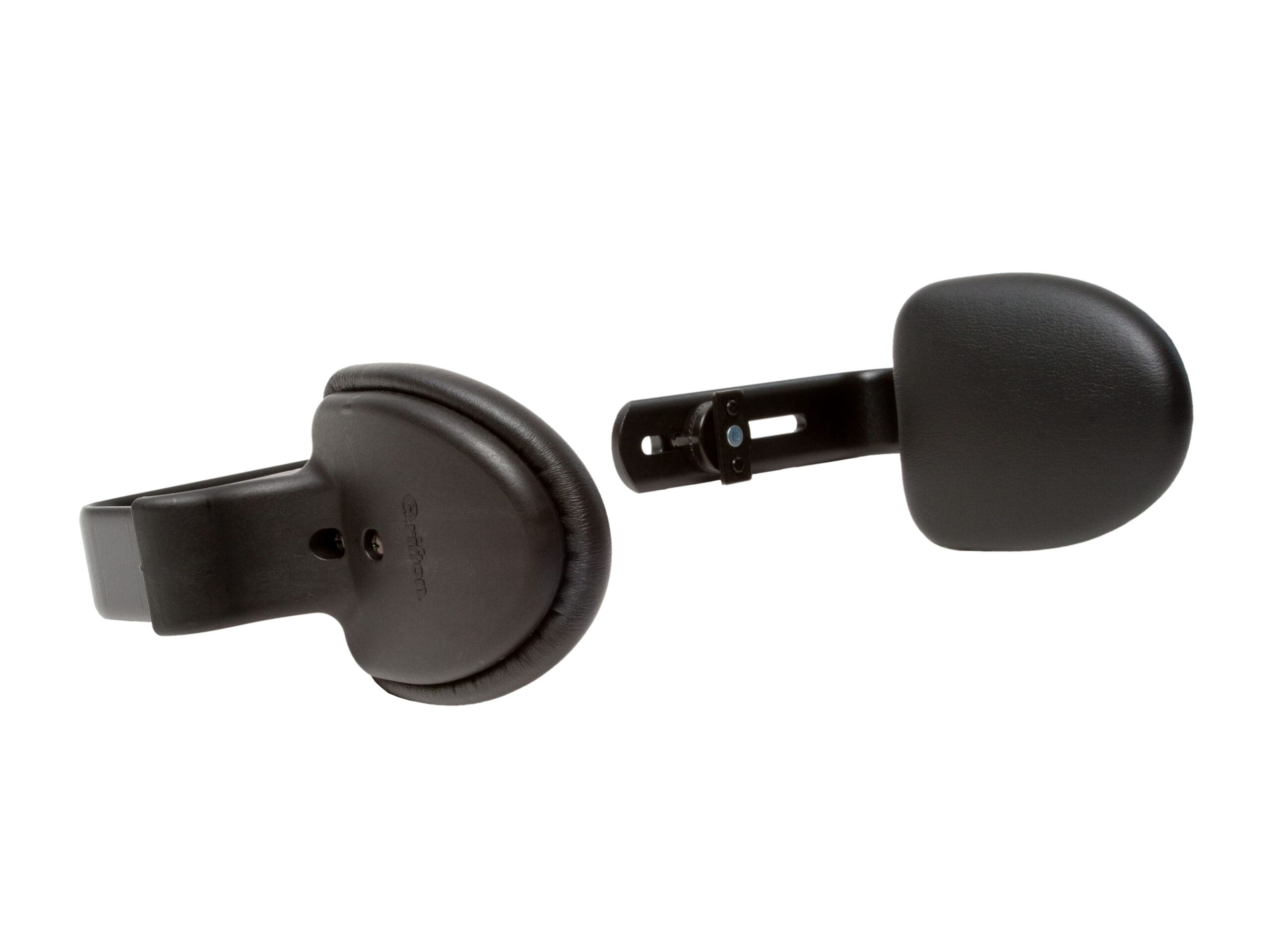

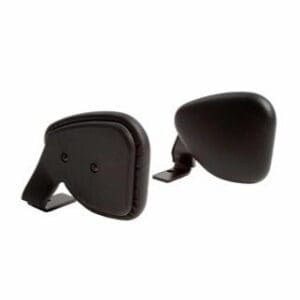

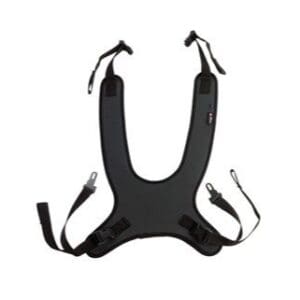

Trunk Support Width | 14-29 | 14-29 | 17-30 | 17-30 | 24-36 | 24-36 |
Backrest Height | 32-39 | 32-39 | 39-48 | 39-48 | 48-61 | 48-61 |

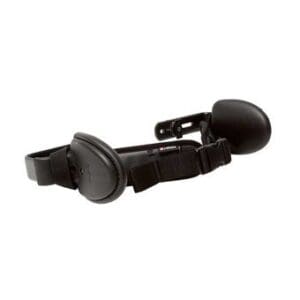

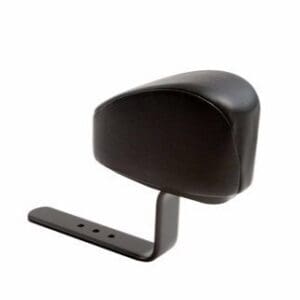

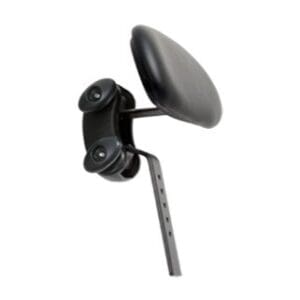

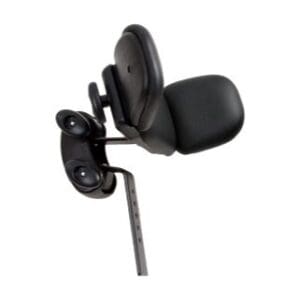

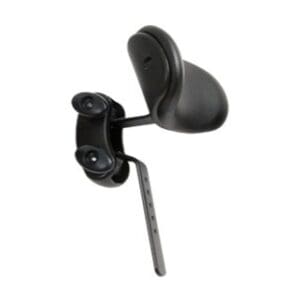

Headrest Height Above Seat | 37-53 | 37-53 | 44-62 | 44-62 | 50-75 | 50-75 |
Max. Working Load [Kg] | 34 | 34 | 68 | 68 | 102 | 102 |
