Freedom Chair A10 Carbon Ultra Electric Folding Wheelchair

Code FCA10

Carbon fibre Freedom Chair at 20 kg without battery. Folds to 390 mm wide, with pneumatic tyres, regenerative brakes and phone app control.

How to get it

BuyQuotes in the format your funding needs: NDIS, aged care, DVA or private.
HireEnquire about hireDelivered and set up. Ask us about weekly rates.
TrialBook a trialTry it at home or in our showroom, no obligation.
AskAsk a questionTalk to a consultant. Call us or send a question.

For OTs and support coordinators

Assessment support, trials at home or in the showroom, quotes with NDIS item codes and a consultant who will do the home measure.

Delivered and assembled · NDIS, aged care, DVA and private · Serviced by our own technicians

About this product

The A10 Carbon Ultra is the top of the Freedom Chair range. The black carbon fibre frame weighs 20 kg without its 1.9 kg battery, and it folds down to 390 mm wide, which suits small boots, hallways and hotel rooms.

Large pneumatic tyres, 318 mm (12.5 in) at the rear and 200 mm at the front, and 75 mm of ground clearance give it a comfortable ride. Electronic regenerative disc brakes, a 40 A brushless controller and a Bluetooth control panel with phone app control come standard. The tightest turn is 950 mm radius.

Who it suits

Adults up to 120 kg who can transfer independently, travel often and want a carbon fibre chair with a soft ride on pneumatic tyres. The narrow fold suits small cars and tight storage. People over 120 kg should look at the A12 Carbon Max. The prescribing OT makes the final call. Book a trial at home or in one of our showrooms.

Good to know

  • Seat size published as 450 x 440 mm

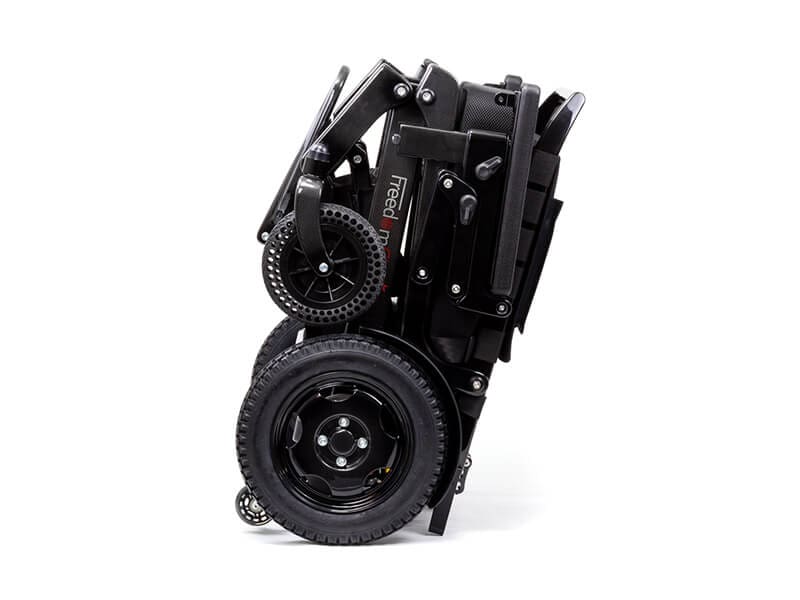

  • Folds to 390 mm wide
  • Bluetooth control panel with phone app control
  • Off-board 3 A charger

Specifications

Overall width630 mm
Overall length1140 mm
Overall height970 mm
Folded size630 x 390 x 760 mm (length x width x height)
Weight capacity120 kg
Weight20 kg (base, without battery)
Turning radius950 mm
Range13 km
Speed7 km/h
Ground clearance75 mm
Battery24 V 10 Ah lithium, 1.9 kg
Motor2 x 250 W brushless, rear-wheel drive
Front wheels200 mm pneumatic
Rear wheels318 mm (12.5 in) pneumatic
WarrantyFrame 2 years
Electronics, motor, battery, charger and joystick 1 year
FeaturesBluetooth control panel with phone app control
40 A brushless motor controller
Off-board 3 A charger
Colour black
Frame or main materialCarbon fibre
Brake typeElectronic regenerative disc brakes
Other specificationSeat size 450 x 440 mm (as published)

Not sure what your client needs yet?

Call us. A ten-minute conversation is usually the fastest way to a good answer.
