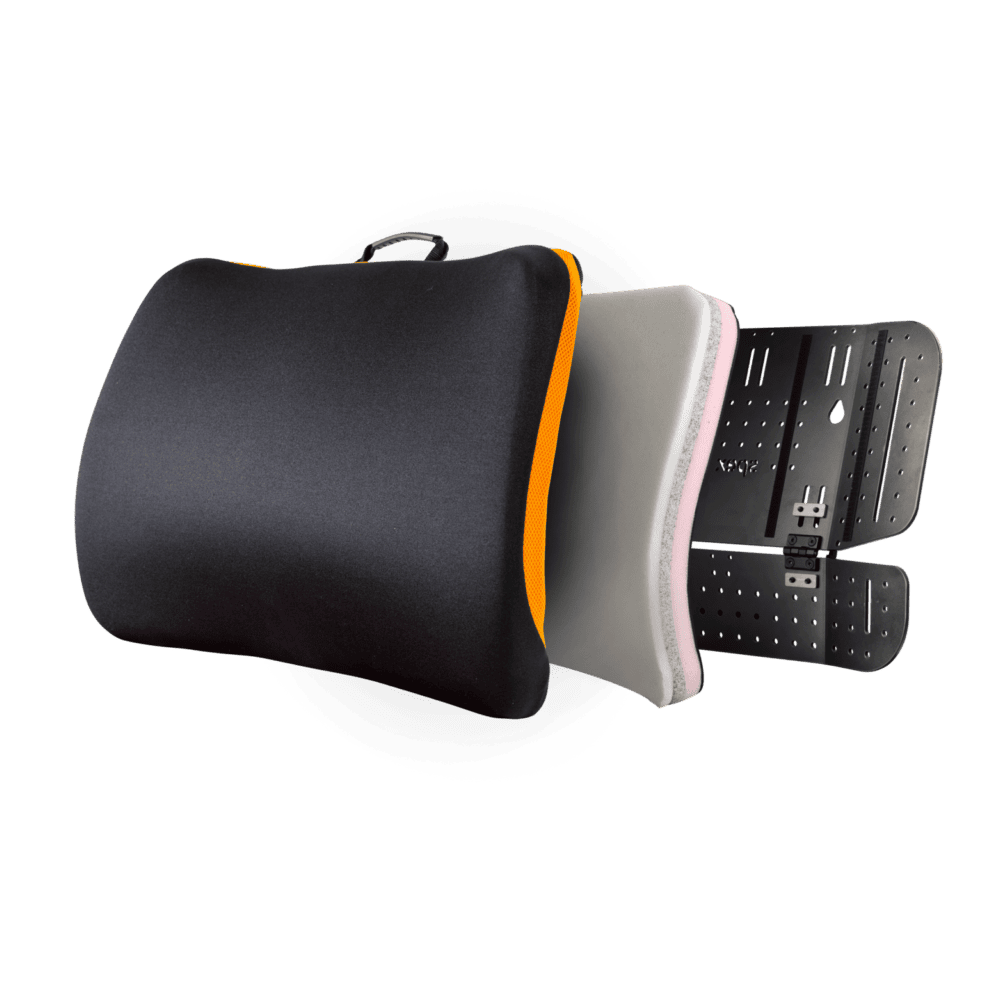

Spex XLella2 Bariatric Back Support. Bi-angle adjustable shell with 5″ articulating lower section

Code 1258-2417-200

A bariatric wheelchair back support rated to 300 kg with a bi-angle adjustable shell and an articulating lower section. Suits larger clients whose posterior tissue shape prevents a standard back from sitting against the spine.

How to get it

BuyQuotes in the format your funding needs: NDIS, aged care, DVA or private. Delivery and assembly are included.
HireEnquire about hireDelivered and set up. Ask us about weekly rates and minimum periods.
TrialBook a trialTry it at home or in our showroom, no obligation.
AskAsk a questionTalk to a consultant. Call us or send a question.

For OTs and support coordinators

Assessment support, trials at home or in the showroom, quotes with NDIS item codes and a consultant who will do the home measure.

Delivered and assembled · NDIS, aged care, DVA and private · Serviced by our own technicians

About this product

Many bariatric clients carry tissue mass behind the pelvis, and a single-piece back simply gets pushed forward by it, leaving the trunk unsupported and the client reclining away from the chair. The Spex XLella2 solves that with a two-section shell: the lower section adjusts independently of the upper, so the back can be shaped around what is actually there.

The lower section swings both posteriorly, to open the back out and clear tissue, and anteriorly, to bring the surface forward into lumbar contact. The upper section is then set separately for trunk support. This variant has the five-inch articulating lower section.

The outer cover is dual-layer with air-mesh side panels and a moisture-wicking face, which is aimed squarely at heat and moisture over a large contact area. Hardware comes two ways: fixed mount is lighter and can be flipped to gain seat depth, while quick release suits folding wheelchairs and transport. It is transport certified.

Specifications

Weight capacity300
Weight3.9 kg (22 in shell, excluding hardware)
Height17"
21"
25"
XX"
Width<28"
22"
24"
26"
28"
29" – 32"
Overall depth60 mm including cover
Adjustment rangeLower section 85 degrees total, 55 posterior and 30 anterior
Cover materialDual-layer with air-mesh side panels and moisture-wicking face
Mounting or fixingFixed mount or quick release

Compare sizes

Pick a column to select that option.

17", 22"1258-2217-200Select
21", 22"1258-2221-200Select
25", 22"1258-2225-200Select
17", 24"1258-2417-200Select
21", 24"1258-2421-200Select
25", 24"1258-2425-200Select
Height17"21"25"17"21"25"
Width22"22"22"24"24"24"
