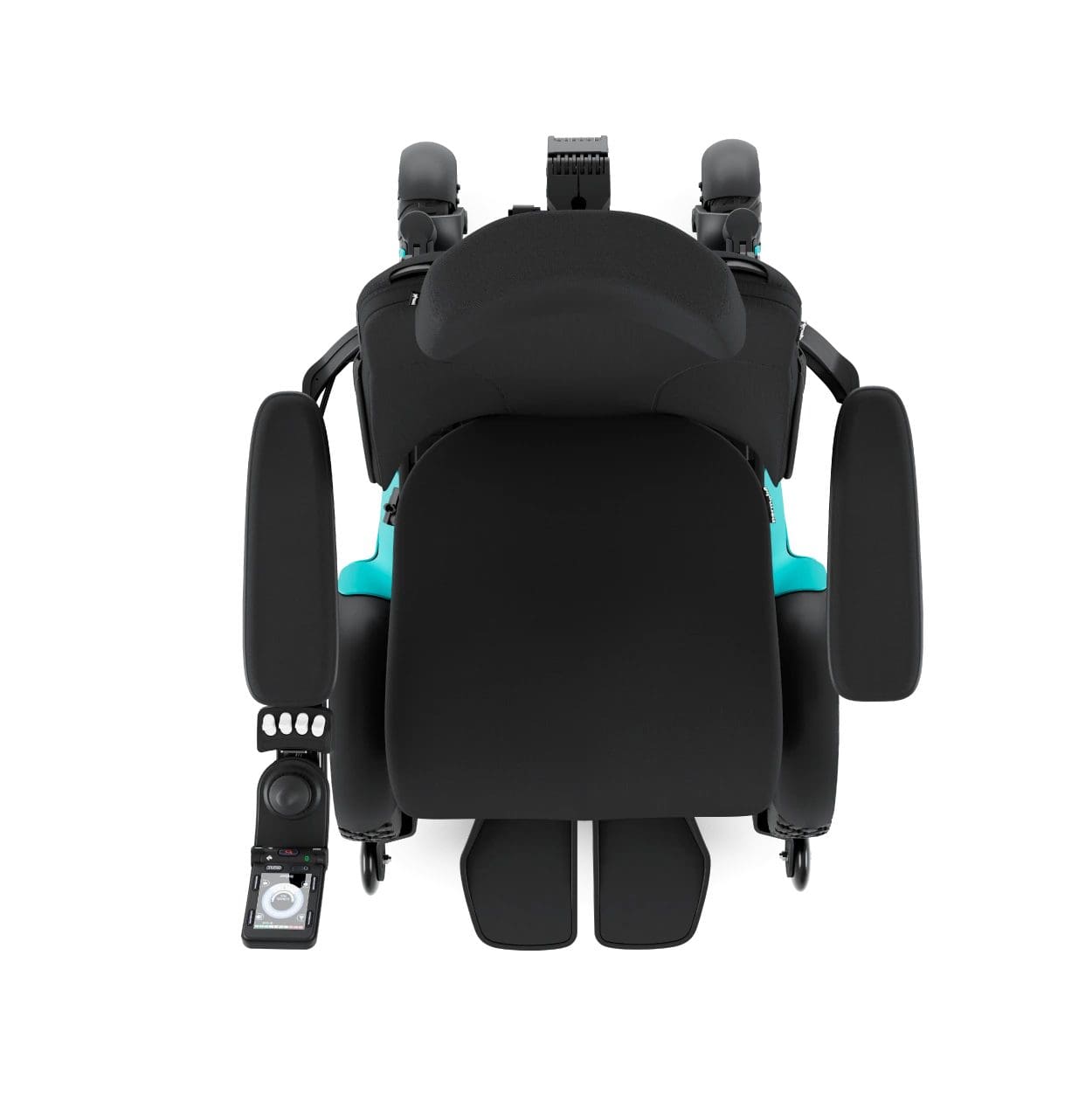

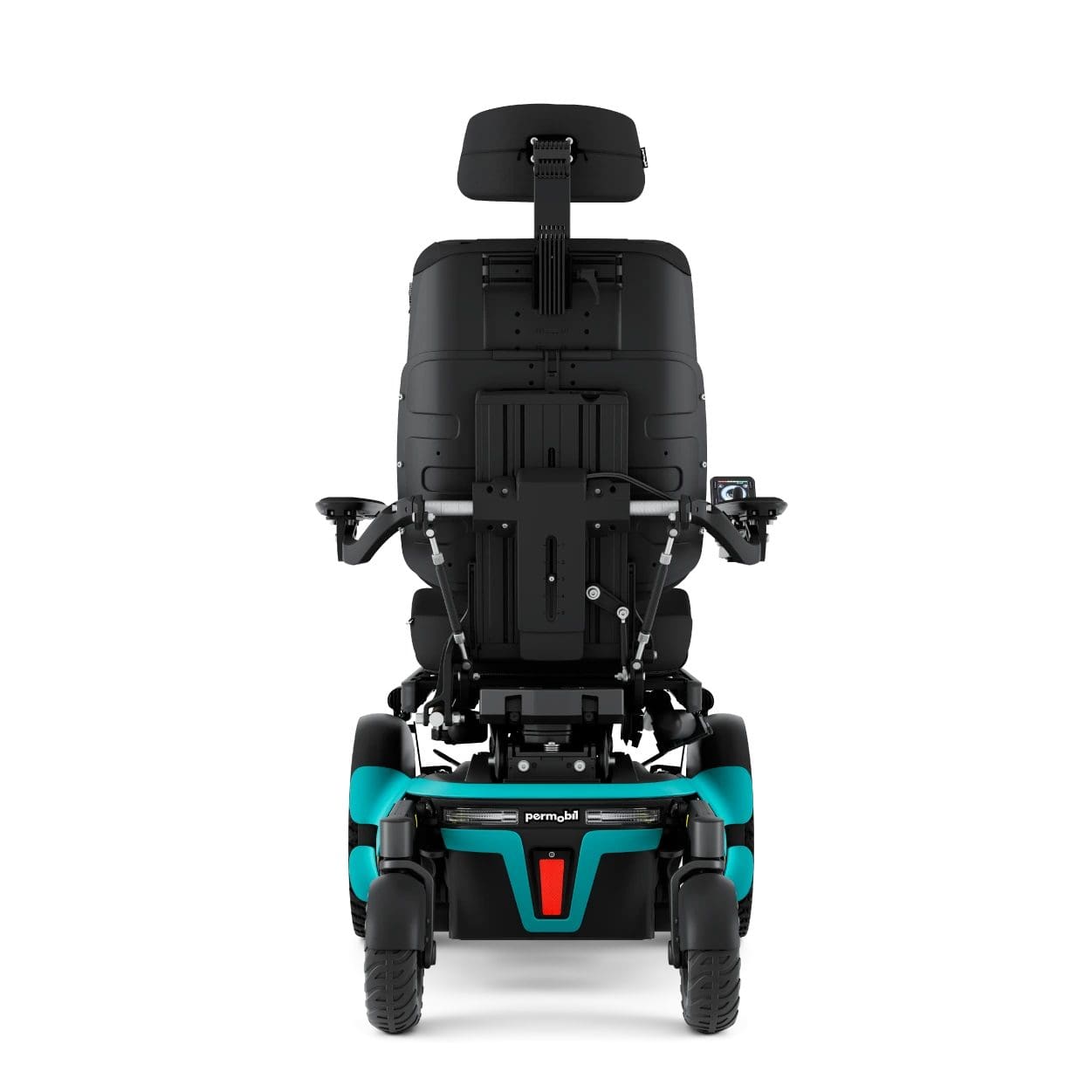

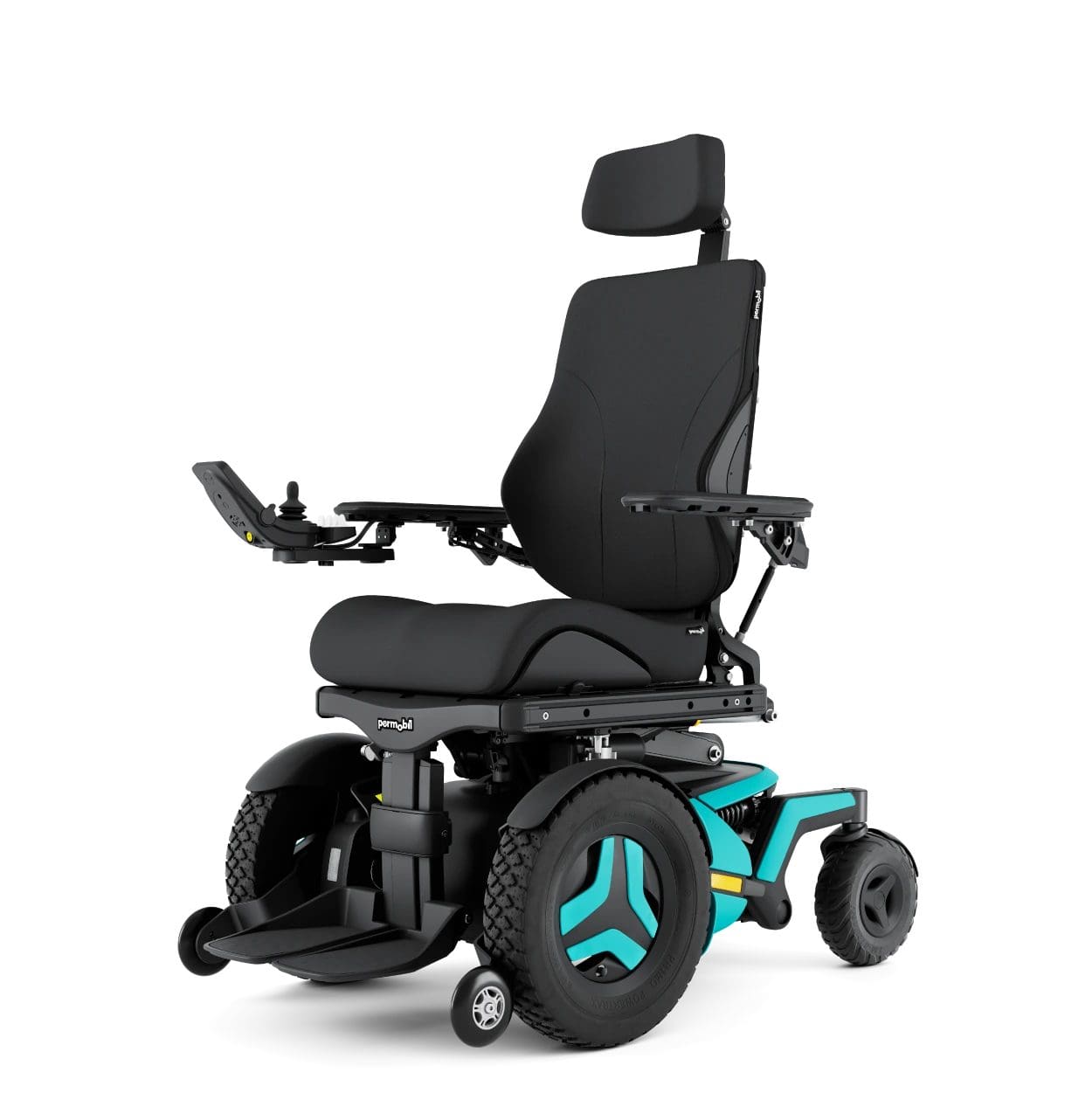

Permobil F5 Corpus Power Wheelchair

Code 108992-99-0

A front wheel drive power chair for adults who need a full set of power seating functions and a chair that handles real outdoor ground. Front wheel drive puts the drive wheels ahead of the client, which helps in tight indoor spaces and when approaching obstacles. Who it suits Clients with complex postural and pressure…

How to get it

BuyQuotes in the format your funding needs: NDIS, aged care, DVA or private. Delivery and assembly are included.
HireEnquire about hireDelivered and set up. Ask us about weekly rates and minimum periods.
TrialBook a trialTry it at home or in our showroom, no obligation.
AskAsk a questionTalk to a consultant. Call us or send a question.

For OTs and support coordinators

Assessment support, trials at home or in the showroom, quotes with NDIS item codes and a consultant who will do the home measure.

Delivered and assembled · NDIS, aged care, DVA and private · Serviced by our own technicians

About this product

A front wheel drive power chair for adults who need a full set of power seating functions and a chair that handles real outdoor ground. Front wheel drive puts the drive wheels ahead of the client, which helps in tight indoor spaces and when approaching obstacles.

Who it suits

Clients with complex postural and pressure care needs who use their chair all day, indoors and out, and need tilt, recline, elevating legrests and seat elevation working together rather than one function at a time.

The Corpus seating system carries a dual density backrest foam and an ergonomic seat shaped for pressure redistribution across long sitting hours. ActiveHeight elevation brings a client to standing eye level for conversation, kitchen benches and reach, and ActiveReach tilts forward to extend usable reach further. ComfortRide Pro suspension uses oil dampened shocks on all four wheels independently, so the ride stays settled even with the seat raised.

The R net control system supports a wide range of alternative drive controls where a standard joystick is not appropriate.

Specifications

Overall width650 to 790 mm
Overall length1165 mm
Overall height1090 to 1170 mm
Seat width420 to 570 mm
Seat depth370 to 570 mm
Seat height450 to 800 mm
Seat elevationUp to 356 mm
Weight capacity150
Weight189 kg
Turning radius745 mm
Speed10 km/h
Battery2 x 12 V group 24 gel, 85 Ah (C20)
Warranty2 years limited (batteries 1 year)
Adjustment rangeTilt 0 to 50 degrees posterior (anterior optional), recline 85 to 180 degrees, legrests 85 to 180 degrees, seat elevation about 350 mm
Arm height180 to 260 mm
Back height480 to 620 mm
Brake typeElectromagnetic motor brakes, R-net 120 A controller
Front wheel size3.00 to 8 in drive wheels, air or solid
Max gradient6 degrees
Other specificationKerb climbing 75 mm, ground clearance 80 mm, IPX4, Class B, Group 4
Power sourceFront-wheel drive, 24 V
Range per charge30 km
Rear wheel size210 x 65 mm solid castors
Applicable standardISO 7176-8, ISO 7176-9, ISO 7176-14, ISO 7176-16, ISO 7176-21, ISO 7176-25
