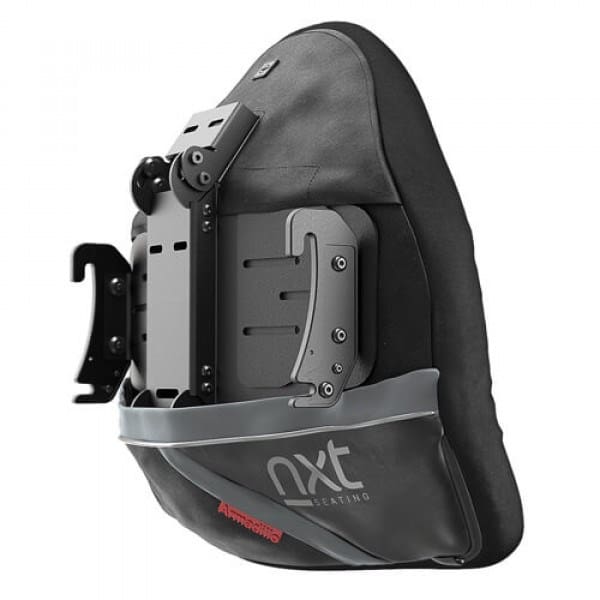

NXT Armadillo Back Support, Three-section modular shell

Code NMAPSB18-TALL

Kyphosis is the problem this back support was designed around. The shell is built in three sections that hinge against each other, so the back is shaped to follow the spine your client already has. Who it suits People with a fixed or partly correctable thoracic curve, and anyone whose spinous processes take pressure against…

How to get it

BuyQuotes in the format your funding needs: NDIS, aged care, DVA or private. Delivery and assembly are included.
HireEnquire about hireDelivered and set up. Ask us about weekly rates and minimum periods.
TrialBook a trialTry it at home or in our showroom, no obligation.
AskAsk a questionTalk to a consultant. Call us or send a question.

For OTs and support coordinators

Assessment support, trials at home or in the showroom, quotes with NDIS item codes and a consultant who will do the home measure.

Delivered and assembled · NDIS, aged care, DVA and private · Serviced by our own technicians

About this product

Kyphosis is the problem this back support was designed around. The shell is built in three sections that hinge against each other, so the back is shaped to follow the spine your client already has.

Who it suits

People with a fixed or partly correctable thoracic curve, and anyone whose spinous processes take pressure against a flat back. The middle section carries recessed off-loading channels so the bony prominences sit in space, clear of the shell. The bottom plate adjusts on its own to set pelvic support independently of what is happening higher up.

For the clinician it means the fitting can be done on the chair with the client in it, and revisited as posture changes. The gel infused visco cushion and the stretch cover help with heat and shear for someone sitting long days. Mounting hooks expand outwards, which gives some latitude when the chair is wider than the shell.

Specifications

Fits Wheelchair Width14 inch-16 inch (35.6-40.6 cm)
16 inch-18 inch (40.6-45.7 cm)
18 inch-20 inch (45.7-50.8 cm)
20 inch-22 inch (50.8-55.9 cm)
22 inch-24 inch (55.9-61 cm)
24 inch-26 inch (61 – 63.5 cm)
Back Height16 inch (40.6 cm)
18 inch (45.7 cm)
20 inch (50.8 cm)

Compare sizes

Pick a column to select that option.

14 inch-16 inch (35.6-40.6 cm), 16 inch (40.6 cm)NMAPSB14Select
16 inch-18 inch (40.6-45.7 cm), 16 inch (40.6 cm)NMAPSB16Select
18 inch-20 inch (45.7-50.8 cm), 18 inch (45.7 cm)NMAPSB18Select
18 inch-20 inch (45.7-50.8 cm), 20 inch (50.8 cm)NMAPSB18-TALLSelect
20 inch-22 inch (50.8-55.9 cm), 18 inch (45.7 cm)NMAPSB20Select
20 inch-22 inch (50.8-55.9 cm), 20 inch (50.8 cm)NMAPSB20-TALLSelect
Fits Wheelchair Width14 inch-16 inch (35.6-40.6 cm)16 inch-18 inch (40.6-45.7 cm)18 inch-20 inch (45.7-50.8 cm)18 inch-20 inch (45.7-50.8 cm)20 inch-22 inch (50.8-55.9 cm)20 inch-22 inch (50.8-55.9 cm)
Back Height16 inch (40.6 cm)16 inch (40.6 cm)18 inch (45.7 cm)20 inch (50.8 cm)18 inch (45.7 cm)20 inch (50.8 cm)

Not sure what your client needs yet?

Call us. A ten-minute conversation is usually the fastest way to a good answer.
