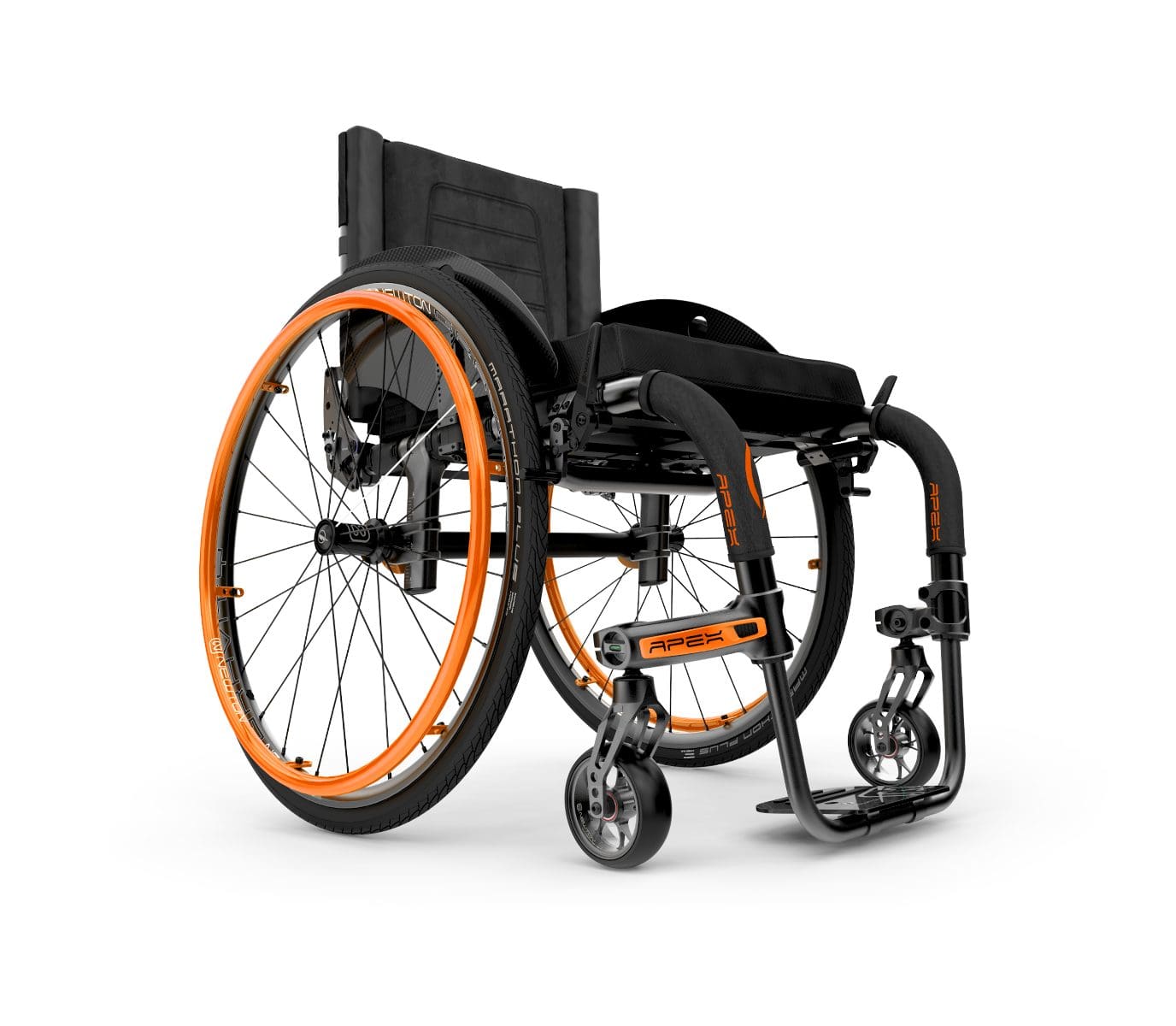

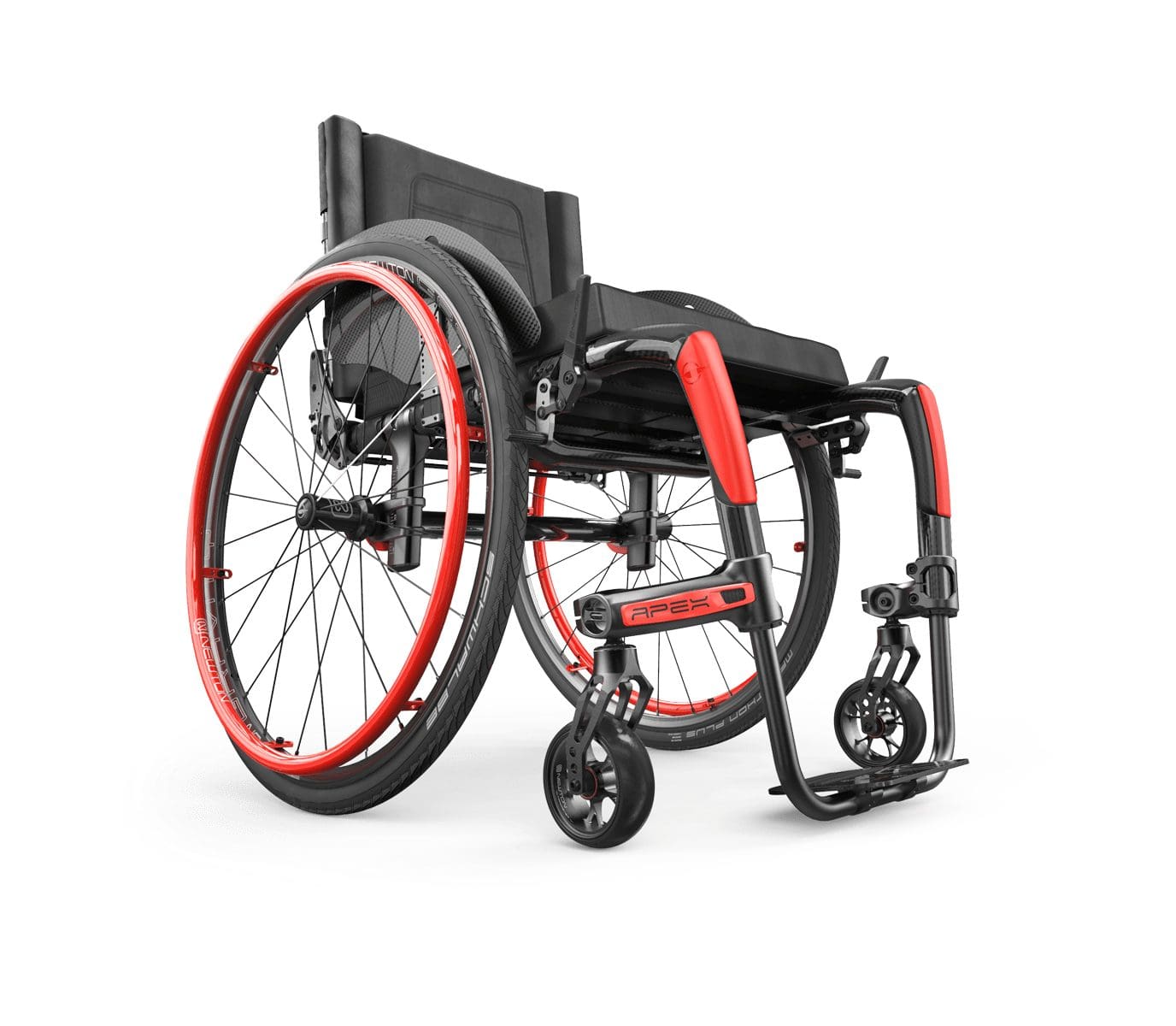

Motion Composites Apex Rigid Wheelchair

Code APEX

The Apex is a rigid everyday chair for an adult who self propels full time and wants the setup tuned closely to their body. It comes in two builds, the Apex A in triple butted aluminium with carbon components, and the Apex C in T700 carbon fibre, both with a carbon rigidiser bar to keep…

How to get it

BuyQuotes in the format your funding needs: NDIS, aged care, DVA or private. Delivery and assembly are included.
HireEnquire about hireDelivered and set up. Ask us about weekly rates and minimum periods.
TrialBook a trialTry it at home or in our showroom, no obligation.
AskAsk a questionTalk to a consultant. Call us or send a question.

For OTs and support coordinators

Assessment support, trials at home or in the showroom, quotes with NDIS item codes and a consultant who will do the home measure.

Delivered and assembled · NDIS, aged care, DVA and private · Serviced by our own technicians

About this product

The Apex is a rigid everyday chair for an adult who self propels full time and wants the setup tuned closely to their body. It comes in two builds, the Apex A in triple butted aluminium with carbon components, and the Apex C in T700 carbon fibre, both with a carbon rigidiser bar to keep the rear end stiff.

Adjustment is the strength here. Back angle, centre of gravity, camber, front frame angle, seat to floor height and armrest height all move, and the frame is laser etched so left and right can be matched exactly and a change can be repeated later. For a clinician, that turns fitting from a best guess into something measurable.

Stiff frames reward efficient pushing, which is the argument for this chair in clients managing shoulder load over decades. A transit anchor kit is available where the chair needs to be occupied in a vehicle.

Specifications

Overall width475 to 800 mm
Seat width305 to 510 mm
Seat depth305 to 510 mm
Seat height355 to 535 mm
Weight capacity120
Weight4.4 to 4.8 kg
Adjustment rangeBack angle 80 to 101 degrees; camber 0, 2, 4, 6 or 8 degrees; centre of gravity 0 to 150 mm; front frame angle 70 to 90 degrees
Arm height150 to 355 mm
Back height230 to 535 mm
Castor size75 to 150 (3 to 6 in)
Country of manufactureCanada
Frame or main materialTriple-butted aluminium (Apex A) or T700 carbon fibre (Apex C)
Other specificationTransport weight 4.8 kg (Apex A) or 4.4 kg (Apex C) at 16 x 16 in without rear wheels; lightest configuration 8.2 kg or 7.8 kg
Rear wheel size510 to 660 (20 to 26 in)
Applicable standardISO 7176-19:2019 and RESNA WC-4:2017 Section 19 with optional transit anchor kit
